Hoodie
BLAZE GARMENTS
Hoodie β Technical Pack
Men's pullover hoodie, brushed fleece, self-fabric hood with flat drawstring, kangaroo pocket, 2Γ2 rib cuffs and hem.
Style No.BLZ-HD-001
FabricCotton/polyester brushed fleece, 320β350 g/mΒ²
ColourwaysGrey, Brown, Maroon, Black, Navy
Size rangeSmall β XXL
ManufacturerBlaze Garments
Versionv1.0 Β· Capability sample

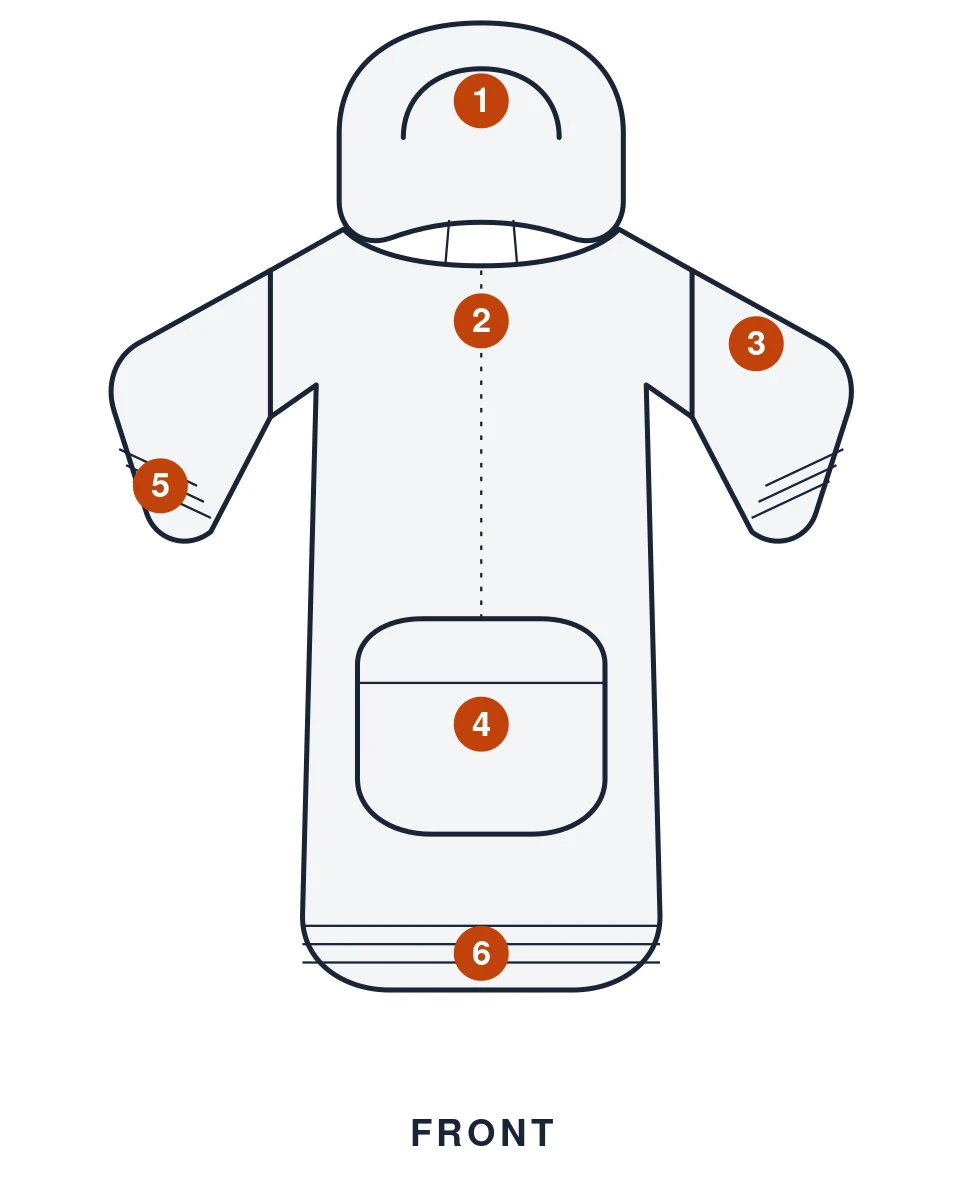

Design Flats & Callouts β Front
- 1Hood β Self-fabric, double layer, flat drawstring with metal aglets fully enclosed.
- 2Centre front placket β Topstitched centre line for symmetry reference β no zip on the pullover version.
- 3Set-in sleeve seam β 4-thread overlock, seam pressed toward body, no puckering.
- 4Kangaroo pocket β Centre front patch pocket, bartack at both top corners, 6 mm topstitch.
- 5Cuffs β 2Γ2 rib knit, finished relaxed, sleeve gathered evenly into cuff.
- 6Hem rib β 2Γ2 rib knit band, body sits flush β no cinching or waviness.
Design Flats & Callouts β Back
- 7Centre back hood seam β Single needle lockstitch, seam pressed open, no visible puckering.
- 8Yoke seam β Back yoke joined with 4-thread overlock, reinforced at shoulder points.

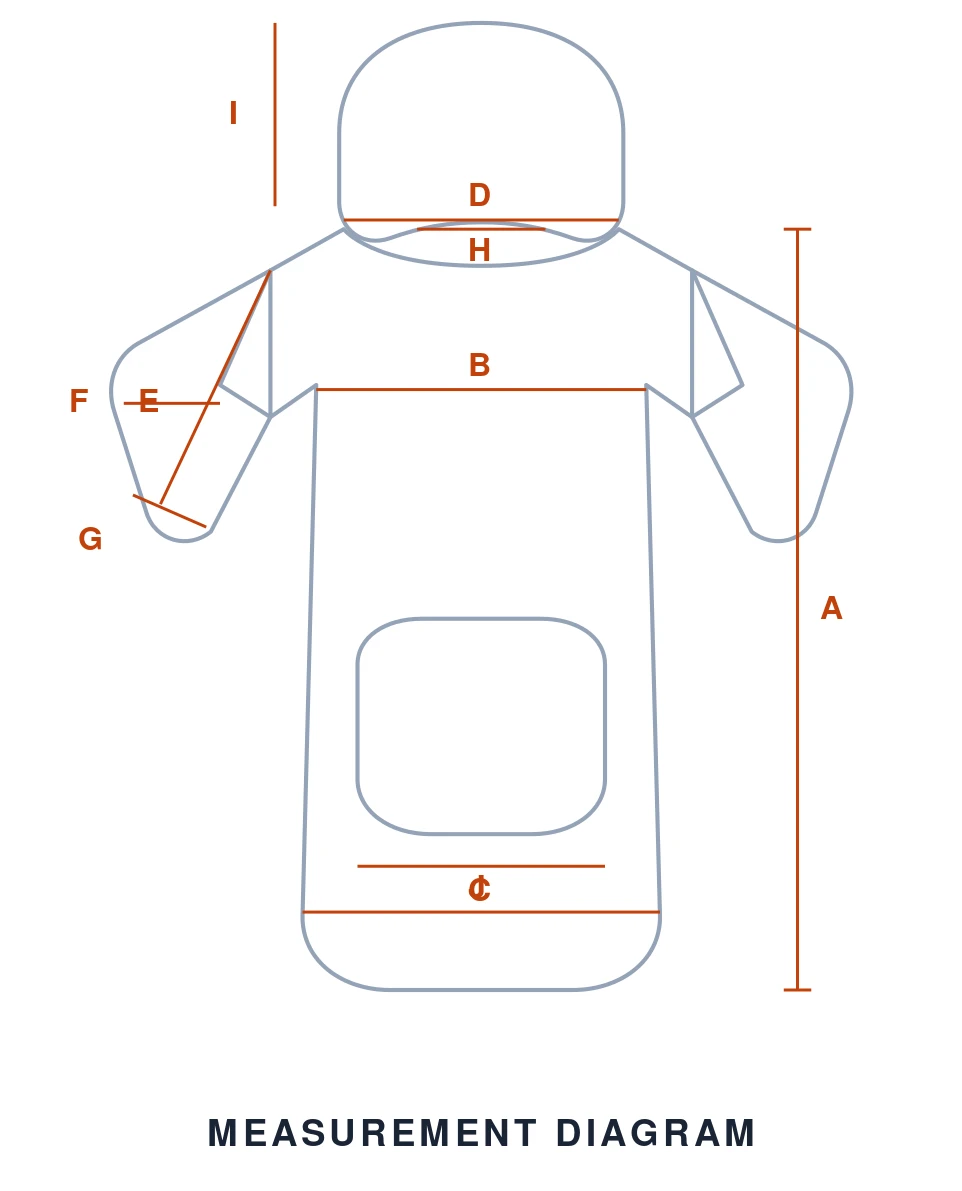

Measurement Diagram & Spec Table
| Code | Point of measure | How to measure | Small | Medium | Large | XL | XXL |
|---|---|---|---|---|---|---|---|
| A | Body length | HPS straight down to hem edge | 66 cm | 68 cm | 70 cm | 72 cm | 74 cm |
| B | Β½ Chest | Straight across, 2.5cm below armhole | 54 cm | 58 cm | 62 cm | 66 cm | 70 cm |
| C | Β½ Sweep | Straight across hem, relaxed | 52 cm | 56 cm | 60 cm | 64 cm | 68 cm |
| D | Shoulder width | Seam to seam, across back | 46 cm | 48 cm | 50 cm | 52 cm | 54 cm |
| E | Sleeve length | Shoulder point to cuff edge | 60 cm | 62 cm | 64 cm | 66 cm | 68 cm |
| F | Β½ Bicep | 2.5cm below armhole, straight across | 20 cm | 21 cm | 22 cm | 23 cm | 24 cm |
| G | Cuff width | Across rib, relaxed | 9 cm | 9.5 cm | 10 cm | 10.5 cm | 11 cm |
| H | Neck width | Seam to seam, straight across | 18 cm | 18.5 cm | 19 cm | 19.5 cm | 20 cm |
| I | Hood height | CB neck seam to hood top | 34 cm | 35 cm | 36 cm | 37 cm | 38 cm |
| J | Pocket width | Outer edge to outer edge | 24 cm | 25 cm | 26 cm | 27 cm | 28 cm |
All measurements in centimetres, garment laid flat, unstretched. Illustrative sample spec β final grading confirmed after proto approval.
Construction Sequence
| # | Operation | Machine / Stitch | Seam / Detail | Quality Point |
|---|---|---|---|---|
| 1 | Join shoulders | 4-thread overlock | 1cm seam allowance, press to back | Shoulders aligned, no stretch |
| 2 | Make hood; attach to neck | Lockstitch + overlock | Double layer hood, drawstring channel edge-stitched | Hood symmetrical, drawstring runs freely |
| 3 | Attach sleeves (set-in) | Overlock + coverstitch | Sleeve eased evenly into armhole | No puckering, armhole smooth |
| 4 | Set kangaroo pocket | Lockstitch | 6mm topstitch, bartack both top corners | Pocket square, bartacks secure |
| 5 | Close side seams | 4-thread overlock | 1cm seam allowance, underarm reinforced | Seam flat, no twisting |
| 6 | Attach cuffs | Overlock + coverstitch | 2Γ2 rib, sleeve gathered evenly | Cuffs even both sides |
| 7 | Attach hem rib | Overlock + coverstitch | 2Γ2 rib band, body sits flush | Hem level, no waviness |
| 8 | Main label + size tab | Lockstitch | CB neck, 4 sides, DTM thread | Straight, centred |
