T-Shirt
BLAZE GARMENTS
T-Shirt β Technical Pack
Men's crew-neck T-shirt, single jersey cotton, set-in short sleeves, clean side seams.
Style No.BLZ-TS-001
FabricCombed cotton single jersey, 180β200 g/mΒ²
ColourwaysWhite, Black, Grey, Navy, Maroon
Size rangeSmall β XXL
ManufacturerBlaze Garments
Versionv1.0 Β· Capability sample

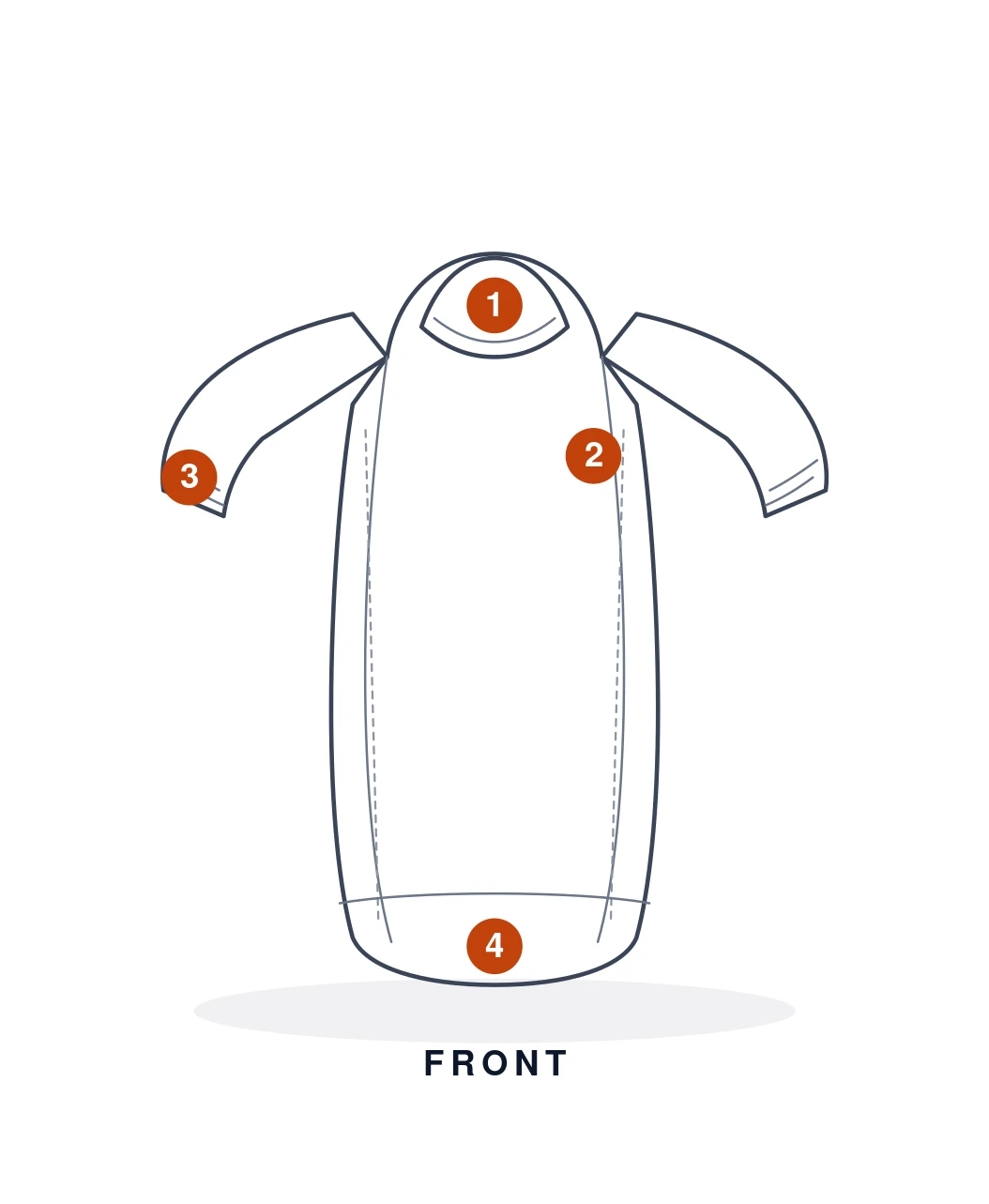

Design Flats & Callouts β Front
- 1Ribbed crew collar β 1Γ1 rib knit, self-fabric, set flat with no roll or gaping.
- 2Chest logo β Embroidered logo, wearer's left chest, placement per spec.
- 3Sleeve hem β Single needle coverstitch, 2cm hem, no twisting.
- 4Bottom hem β Single needle coverstitch, 2cm hem, body sits flat.

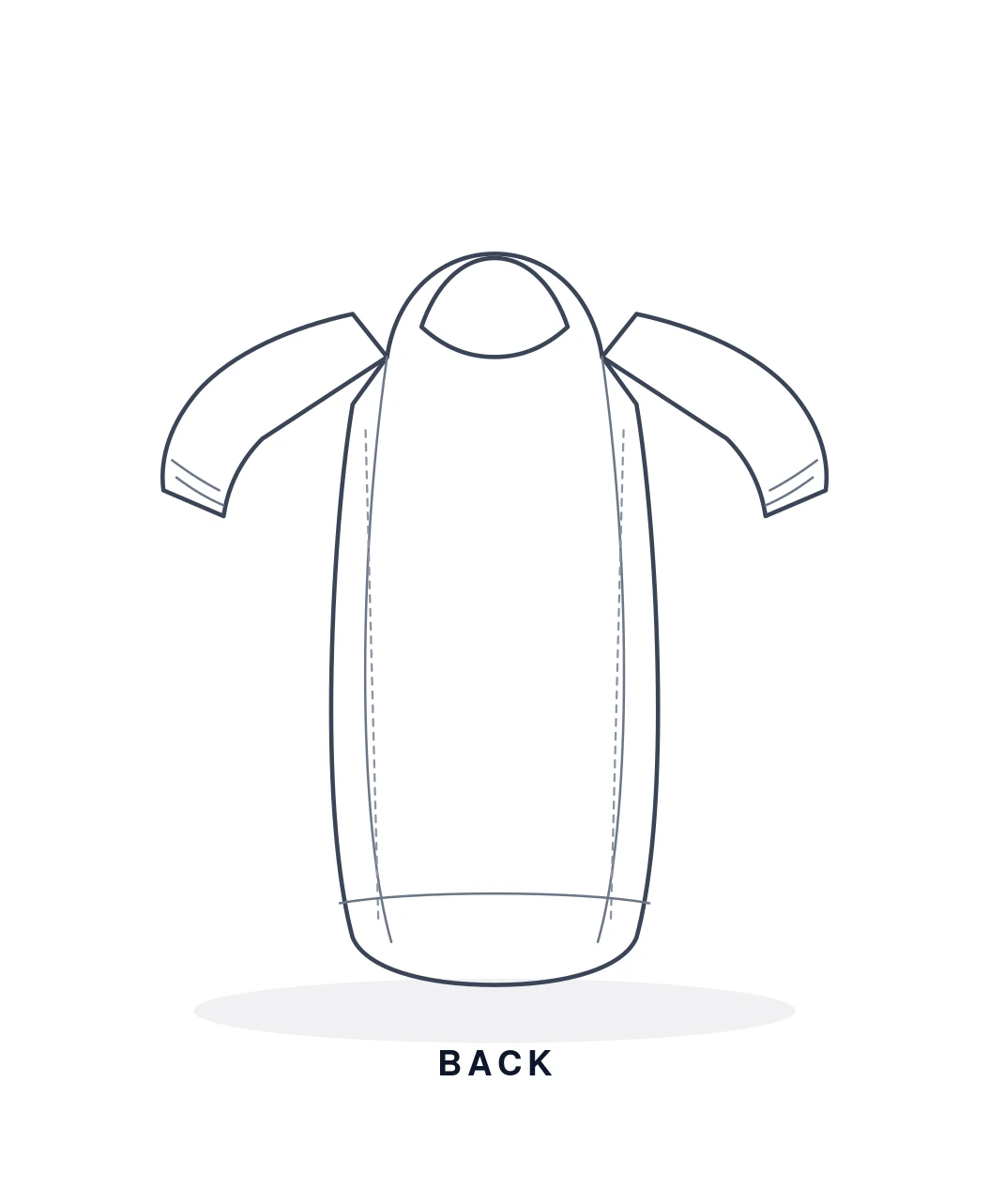

Design Flats & Callouts β Back

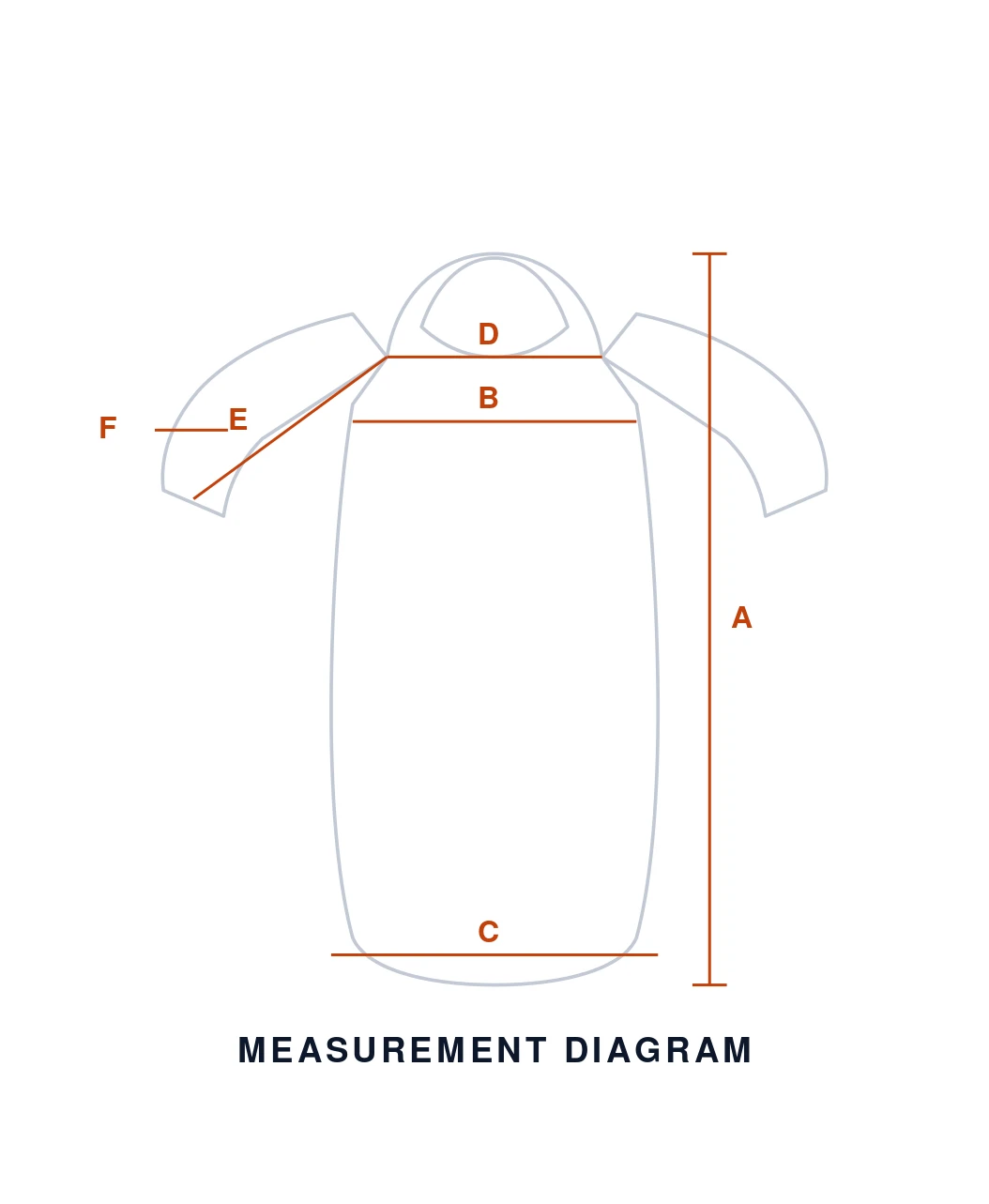

Measurement Diagram & Spec Table
| Code | Point of measure | How to measure | Small | Medium | Large | XL | XXL |
|---|---|---|---|---|---|---|---|
| A | Body length | HPS straight down to hem edge | 68 cm | 70 cm | 72 cm | 74 cm | 76 cm |
| B | Β½ Chest | Straight across, 2.5cm below armhole | 49 cm | 52 cm | 55 cm | 58 cm | 61 cm |
| C | Β½ Sweep | Straight across hem, relaxed | 47 cm | 50 cm | 53 cm | 56 cm | 59 cm |
| D | Shoulder width | Seam to seam, across back | 43 cm | 45 cm | 47 cm | 49 cm | 51 cm |
| E | Sleeve length | Shoulder point to hem edge | 20 cm | 21 cm | 22 cm | 23 cm | 24 cm |
| F | Armhole (straight) | Shoulder point to underarm point | 22 cm | 23 cm | 24 cm | 25 cm | 26 cm |
All measurements in centimetres, garment laid flat, unstretched. Illustrative sample spec β final grading confirmed after proto approval.
Construction Sequence
| # | Operation | Machine / Stitch | Seam / Detail | Quality Point |
|---|---|---|---|---|
| 1 | Join shoulders | 4-thread overlock | 1cm seam allowance, press to back | Shoulders aligned, no stretch |
| 2 | Attach ribbed collar | Overlock + coverstitch | Collar stretched evenly onto neckline | Collar sits flat, no roll or gape |
| 3 | Attach sleeves (set-in) | Overlock + coverstitch | Sleeve eased evenly into armhole | No puckering, armhole smooth |
| 4 | Close side seams | 4-thread overlock | 1cm seam allowance, underarm reinforced | Seam flat, no twisting |
| 5 | Hem sleeves | Coverstitch | 2cm single-needle hem | Even width, no twisting |
| 6 | Hem bottom | Coverstitch | 2cm single-needle hem | Hem level, body flat |
| 7 | Main label + size tab | Lockstitch | CB neck, 4 sides, DTM thread | Straight, centred |
