Casual Shirt
BLAZE GARMENTS
Casual Shirt β Technical Pack
Men's casual button-up shirt, cotton poplin, pointed collar, chest pocket, long sleeves with button cuffs.
Style No.BLZ-SH-001
FabricCotton poplin, 120β140 g/mΒ²
ColourwaysWhite, Sky Blue, Grey, Navy
Size rangeSmall β XXL
ManufacturerBlaze Garments
Versionv1.0 Β· Capability sample

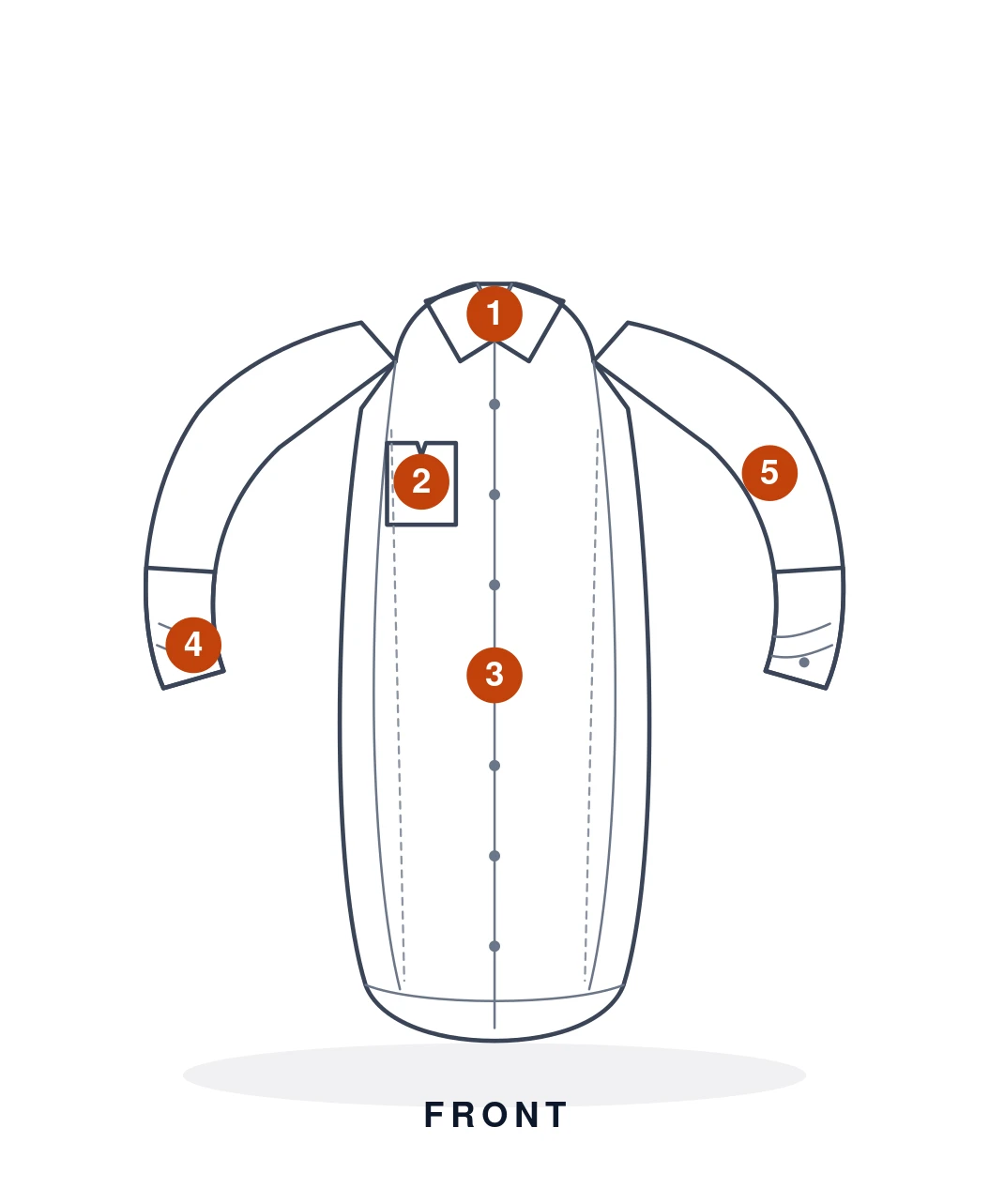

Design Flats & Callouts β Front
- 1Collar β Classic pointed collar, fused, top-stitched 3mm.
- 2Chest pocket β Single patch pocket, wearer's left chest, mitred corners.
- 3Button placket β Centre front placket, 7 buttons, DTM thread.
- 4Button cuff β Two-button adjustable cuff with sleeve placket.
- 5Set-in sleeve seam β 4-thread overlock, seam pressed toward body, no puckering.

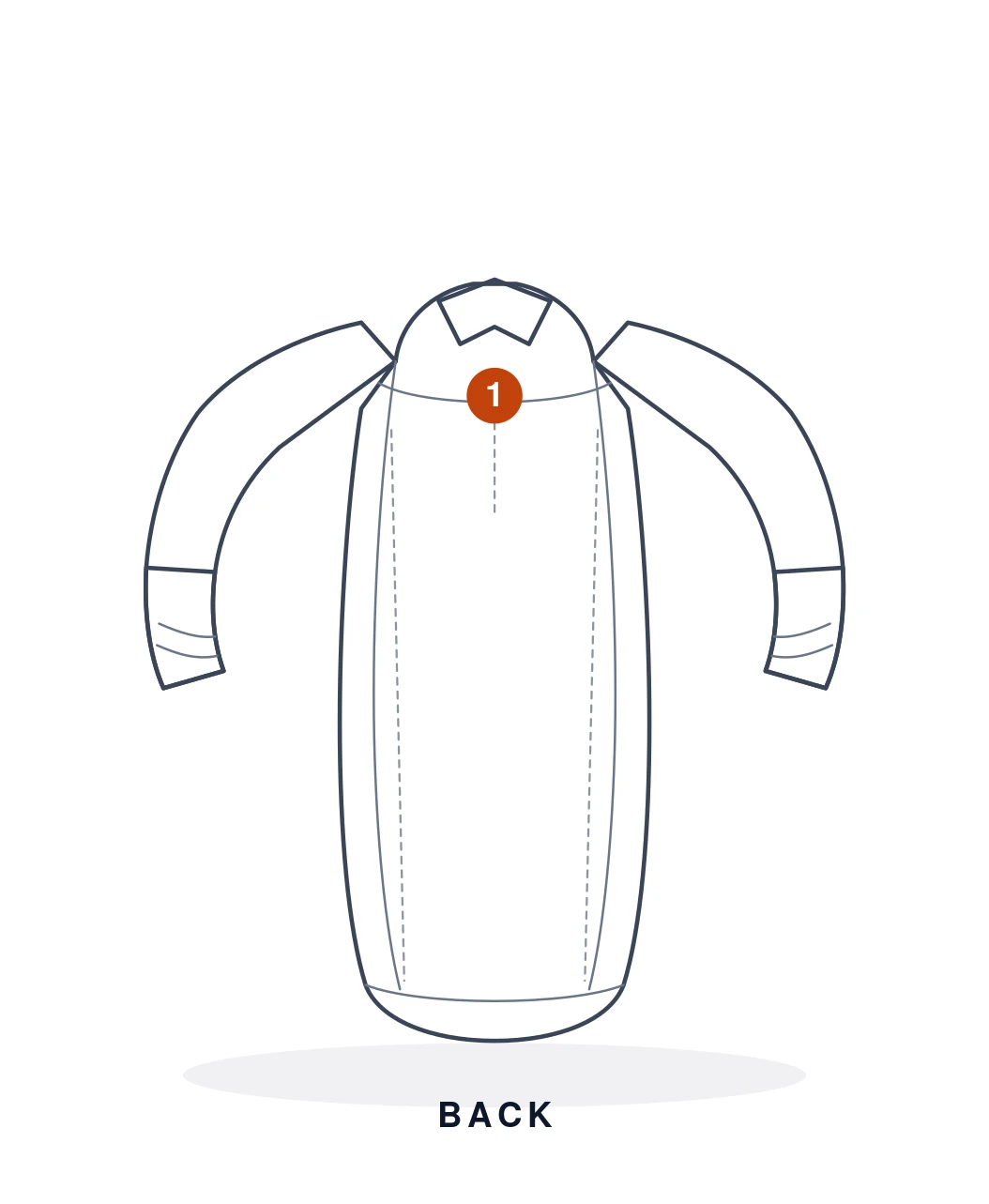

Design Flats & Callouts β Back
- 1Back yoke seam β Double-stitched yoke, seam pressed flat, no puckering.

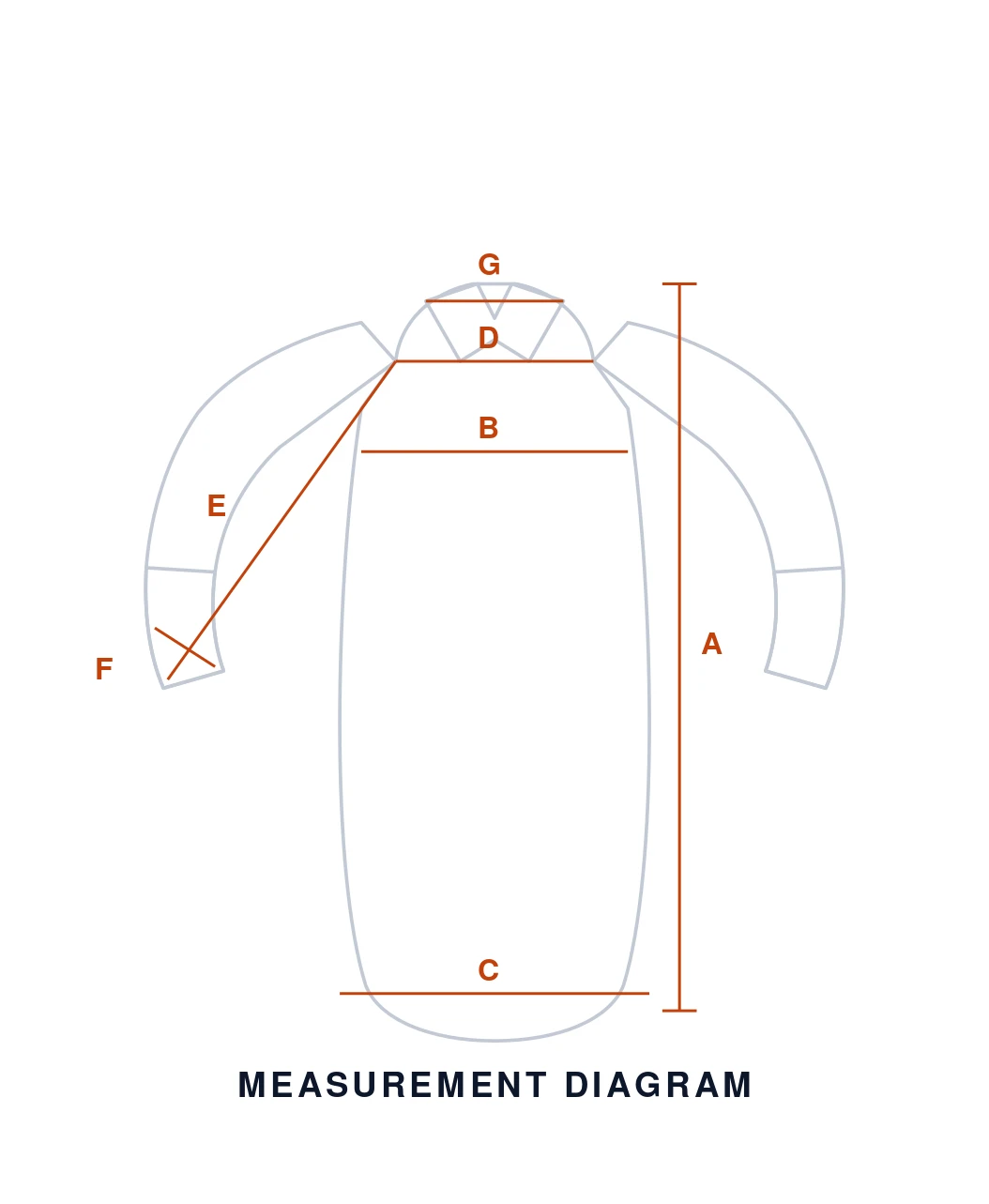

Measurement Diagram & Spec Table
| Code | Point of measure | How to measure | Small | Medium | Large | XL | XXL |
|---|---|---|---|---|---|---|---|
| A | Body length | HPS straight down to shirt-tail hem | 72 cm | 74 cm | 76 cm | 78 cm | 80 cm |
| B | Β½ Chest | Straight across, 2.5cm below armhole | 53 cm | 56 cm | 59 cm | 62 cm | 65 cm |
| C | Β½ Hem width | Straight across shirt-tail hem | 55 cm | 58 cm | 61 cm | 64 cm | 67 cm |
| D | Shoulder width | Seam to seam, across back | 44 cm | 46 cm | 48 cm | 50 cm | 52 cm |
| E | Sleeve length | Shoulder point to cuff edge | 62 cm | 64 cm | 66 cm | 68 cm | 70 cm |
| F | Cuff width | Cuff laid flat, buttoned | 11 cm | 11.5 cm | 12 cm | 12.5 cm | 13 cm |
| G | Collar length | Collar band, point to point | 38 cm | 39 cm | 40 cm | 41 cm | 42 cm |
All measurements in centimetres, garment laid flat, unstretched. Illustrative sample spec β final grading confirmed after proto approval.
Construction Sequence
| # | Operation | Machine / Stitch | Seam / Detail | Quality Point |
|---|---|---|---|---|
| 1 | Join shoulders with yoke | Lockstitch + overlock | Double yoke construction, felled seam | Yoke flat, no puckering |
| 2 | Attach collar | Lockstitch | Fused collar, top-stitched 3mm | Points even, collar sits flat |
| 3 | Set chest pocket | Lockstitch | Mitred corners, bartack at top | Pocket square, corners sharp |
| 4 | Attach sleeves (set-in) | Overlock + lockstitch | Sleeve eased evenly into armhole | No puckering, armhole smooth |
| 5 | Close side seams | 4-thread overlock | 1cm seam allowance, felled | Seam flat, no twisting |
| 6 | Set sleeve placket + cuff | Lockstitch | Two-button adjustable cuff | Placket flat, buttons aligned |
| 7 | Button placket + buttonholes | Lockstitch + buttonhole | 7 buttons, DTM thread | Evenly spaced, secure |
| 8 | Main label + size tab | Lockstitch | CB neck, 4 sides, DTM thread | Straight, centred |
